Hellion 2011-2014 Ford Mustang GT Twin Turbo System

$8,731.75

Additional information

Options

  • Choose Your Turbos *

  • Additional Options *

Some fields in this group failed validation.
SKU: HT-1114GT-TT Categories: , , Brand:

Hellion Power Systems is a turbocharger specialist with one goal – produce and develop the finest bolt-on turbo kits in the industry and back that with outstanding customer service. Since 2004, the company’s core business has been building record setting turbo systems and keeping customers at the forefront of turbocharging technology.

HP Capable
0
Proudly Made In The U.S.A.
Improved Performance
Bolt-On Turbo System
Lifetime Warranty

Description

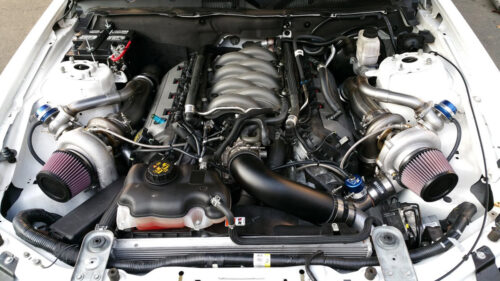

The highly anticipated 2011-2014 Mustang GT TWIN TURBO system is finally here! As a complement to the already available single turbo system, the twin system will  now be able to take your ‘Stang to the next level. The top mount kit is adjustable from 5 psi to over 25 psi. A 5 psi setting will make over 600 rwhp on a bone stock car. The kit has the ability to make over 1200rwhp if a built engine is chosen.

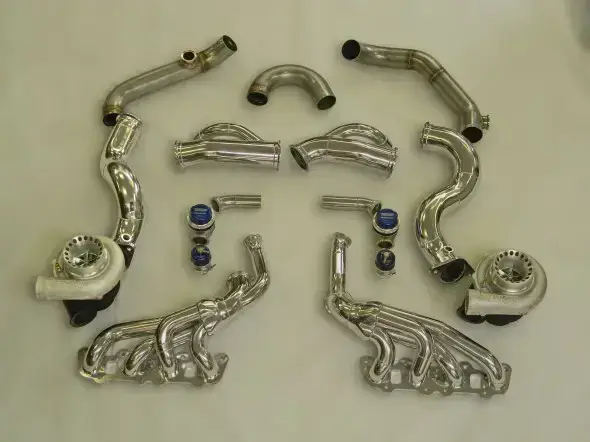

Equipped with:

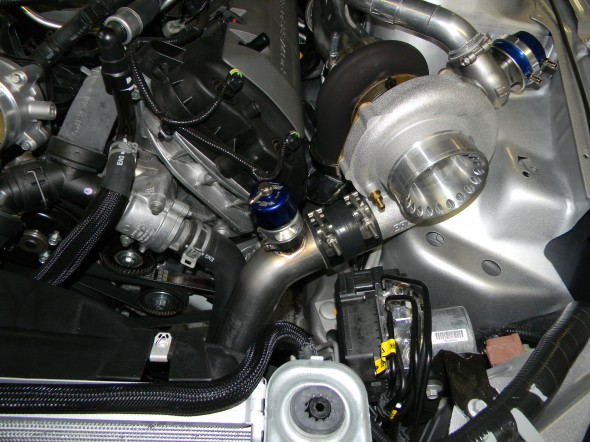

  • Twin 62mm Hellion turbos (v-band inlet for easy installation)
  • Twin Turbosmart 44mm wastegates

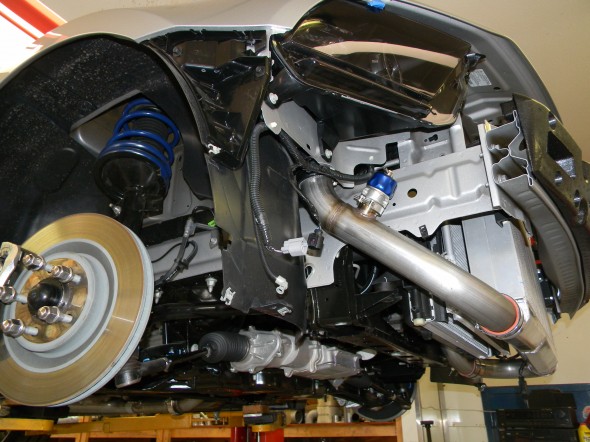

  • Twin Turbosmart VEE port bypass valves
  • Stainless 4 into 1 tubular headers, all American made stainless piping

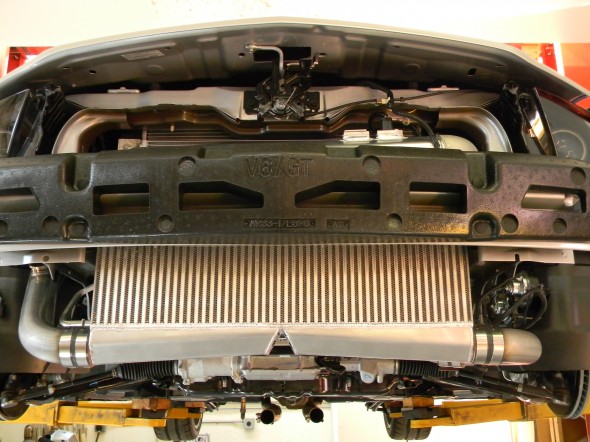

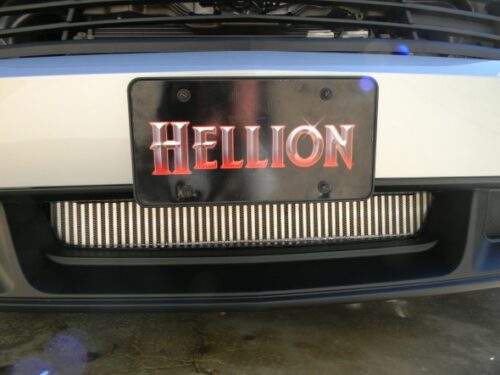

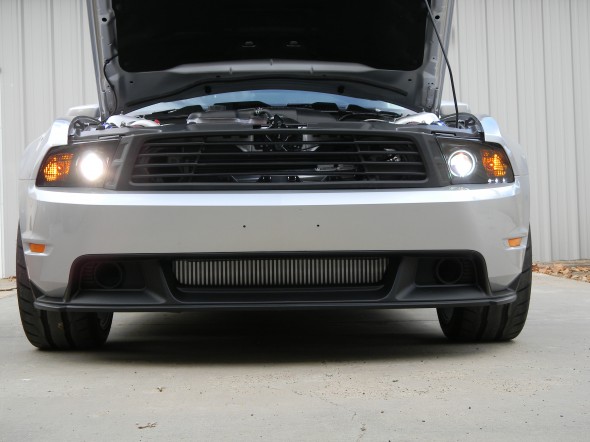

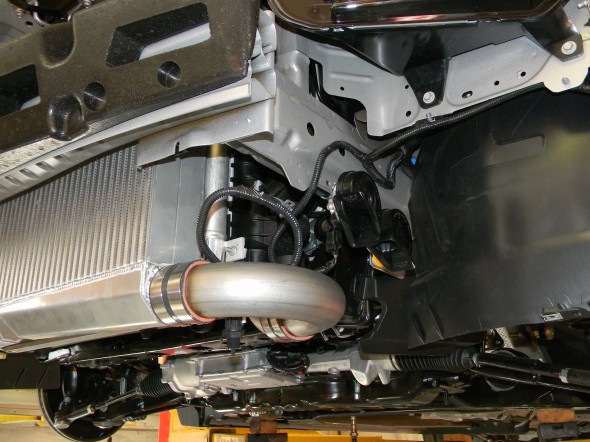

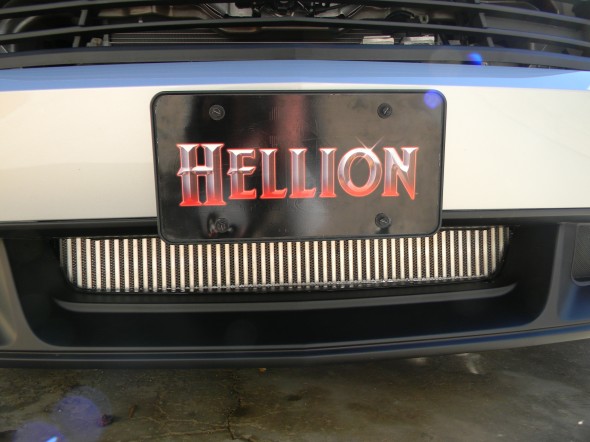

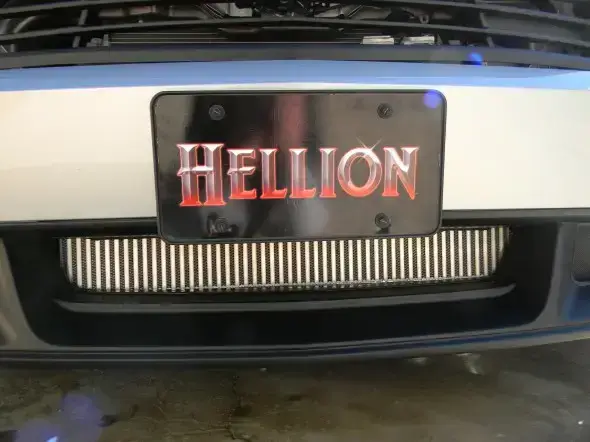

  • Large vertical flow dual inlet intercooler

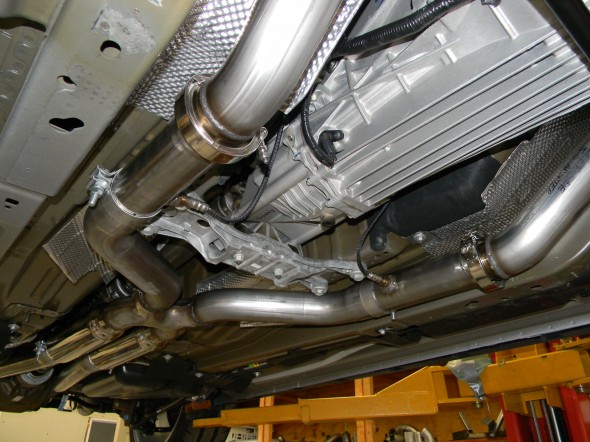

  • Dual 3″ downpipes (can connect to factory exhaust if desired)

FAQ

What’s the difference between the tuner system and complete system?

The complete system includes injectors, programmer, and tuning. The tuner system does not include those items. If a tuner system is purchased you will need to take your vehicle to a dyno facility for tuning.

How does The Eliminator twin turbo system compare to a supercharger?
  • The Eliminator twin turbo system is very comparable cost-wise.
  • To maximize a supercharger, aftermarket headers will be needed, adding to the cost. The Eliminator twin turbo system includes headers, adding to it’s value.
  • The Eliminator twin turbo system has a broader power band than comparable superchargers. For example, a supercharger makes peak horsepower at peak RPM, let’s say 6,500 RPM. A turbo will make peak power at a lower RPM, say 4,000 RPM. The turbo will then carry the power to redline. The supercharger will have a lower bhp at 4,000 RPM.
  • The turbo will have no parasitic loss as the supercharger is belt-driven. The turbo is driven with spent exhaust gases.
Is it overkill to have a twin turbo Eliminator system even if I only want to run 5lbs of boost?

No. This system was designed to operate from 5lbs to over 30lbs if desired. Most customers only run 5lbs of boost, which in the case of The Eliminator, will make an average of 550rwhp (over 600 horsepower at the crank). Turning the boost up with a turbo is as easy as changing the wastegate spring or adding a manual or electronic boost controller.

Does The Eliminator system need heat wrap or ceramic coating?

Not necessarily. The customer can run the system wrapped, coated, or bare. Hellion offers many choices if heat reduction is desired.

Can I keep my factory catalytic converters?

Yes. The system was designed to be able to connect to the factory H-pipe. (Note: all dyno results and testing were done with an off-road exhaust to minimize restriction)

What is the advantage of purchasing an American made turbo system from Hellion?
  • Using CNC bent stainless steel crafted by certified welders and fabricators ensures a perfect fit every time.
  • Lifetime warranty on all stainless steel piping.
  • CEA engineered Precision turbochargers featuring state of the art Pro Mod influenced V-band design.
  • Unsurpassed tech support and assistance. Having been touted as the company that revolutionized the Mustang turbocharging industry, we are continually contacted by our competitors customers seeking tech support. In many cases the customer was unable to contact and/or receive support from our competitor. It is our pleasure to support the turbocharging industry regardless of brand or place of purchase.
What is the difference between log manifolds and tubular headers (as used in The Eliminator system)?

A tubular header will lower restriction and allow higher flow from the engine to the turbocharger (compared to a restictive log manifold). All Hellion headers utilize state of the art tubular design.

Do I have to bring my car to Hellion Power Systems for installation?

No, it is not necessary to bring your car to Hellion Power Systems for installation. We ship our systems world-wide with many customers installing our systems themselves. If you need help with your installation or would like a shop referral please call us at 505-873-4670.

Make Model Year
Make Model Year
Ford Mustang GT 2011-2014
Advantages

DISCLAIMER: Hellion’s products are sold for competition vehicles only and are not legal to be sold or installed in the state of California. All performance modifications and installations are at the customer’s own risk and Hellion holds no responsibility for any consequences, legal, or other, of such use and/or misuse.
