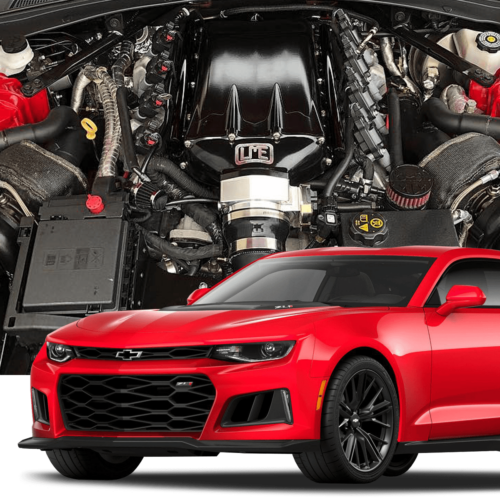

Hellion 2017+ Chevrolet Camaro ZL1 Twin Turbo System

$9,886.75

Additional information

Options

  • Choose Your Turbos *

  • Additional Options *

Some fields in this group failed validation.
SKU: HT-17ZL1-TT Categories: , Brand:

Hellion Power Systems is a turbocharger specialist with one goal – produce and develop the finest bolt-on turbo kits in the industry and back that with outstanding customer service. Since 2004, the company’s core business has been building record setting turbo systems and keeping customers at the forefront of turbocharging technology.

0
HP Capable
Proudly Made In The U.S.A.
Improved Performance
Bolt-On Turbo System
Lifetime Warranty

Description

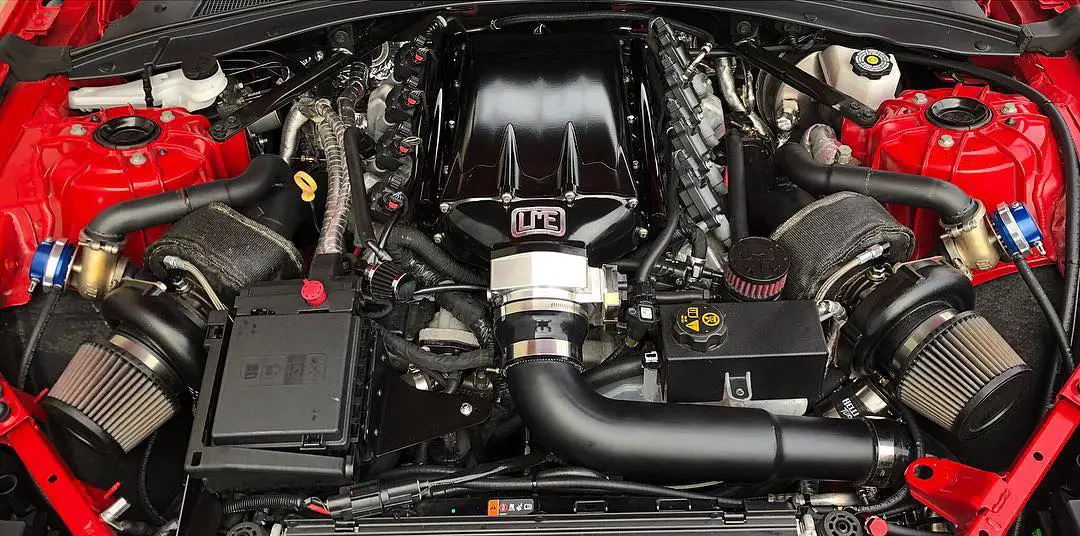

What’s better than a supercharged Camaro ZL1? A twin turbo Camaro ZL1! While the factory supercharger system makes for a fun daily driver, our twin turbo system makes it even better. Ditch the supercharger, swap the intake manifold, install the Hellion kit and call it a day. Modified fuel systems and supporting mods will allow up to 1000whp on pump gas and 1200+whp on race gas.

System Highlights:

  • Top mount stainless turbo headers
  • Twin 62mm turbos (v-band inlet for easy installation)
  • Large vertical flow core intercooler (highest flow bar/plate core available)
  • Twin Turbosmart 40mm wastegates (v-band inlet for easy installation)
  • Dual blow-off valves standard (hear that rush every time you hit the throttle!)
  • All necessary heat protection included in the system (optional ceramic coating available)

FAQ

How does The Eliminator twin turbo system compare to a supercharger?
  • The Eliminator twin turbo system is very comparable cost-wise.
  • To maximize a supercharger, aftermarket headers will be needed, adding to the cost. The Eliminator twin turbo system includes headers, adding to it’s value.
  • The Eliminator twin turbo system has a broader power band than comparable superchargers. For example, a supercharger makes peak horsepower at peak RPM, let’s say 6,500 RPM. A turbo will make peak power at a lower RPM, say 4,000 RPM. The turbo will then carry the power to redline. The supercharger will have a lower bhp at 4,000 RPM.
  • The turbo will have no parasitic loss as the supercharger is belt-driven. The turbo is driven with spent exhaust gases.
Is it overkill to have a twin turbo Eliminator system even if I only want to run 5lbs of boost?”

No. This system was designed to operate from 5lbs to over 30lbs if desired. Most customers only run 5lbs of boost, which in the case of The Eliminator, will make an average of 550rwhp (over 600 horsepower at the crank). Turning the boost up with a turbo is as easy as changing the wastegate spring or adding a manual or electronic boost controller.

Can I keep my factory catalytic converters?

Yes. The system was designed to be able to connect to the factory H-pipe. (Note: all dyno results and testing were done with an off-road exhaust to minimize restriction)

What is the advantage of purchasing an American made turbo system from Hellion?
  • Using CNC bent stainless steel crafted by certified welders and fabricators ensures a perfect fit every time.
  • Lifetime warranty on all stainless steel piping.
  • CEA engineered Precision turbochargers featuring state of the art Pro Mod influenced V-band design.
  • Unsurpassed tech support and assistance. Having been touted as the company that revolutionized the Mustang turbocharging industry, we are continually contacted by our competitors customers seeking tech support. In many cases the customer was unable to contact and/or receive support from our competitor. It is our pleasure to support the turbocharging industry regardless of brand or place of purchase.
What is the difference between log manifolds and tubular headers (as used in The Eliminator system)?

A tubular header will lower restriction and allow higher flow from the engine to the turbocharger (compared to a restictive log manifold). All Hellion headers utilize state of the art tubular design.

Do I have to bring my car to Hellion Power Systems for installation?”

No, it is not necessary to bring your car to Hellion Power Systems for installation. We ship our systems world-wide with many customers installing our systems themselves. If you need help with your installation or would like a shop referral please call us at 505-873-4670.

Make Model Year
Make Model Year
Chevrolet Camaro ZL1 2017-Present
Advantages

DISCLAIMER: Hellion’s products are sold for competition vehicles only and are not legal to be sold or installed in the state of California. All performance modifications and installations are at the customer’s own risk and Hellion holds no responsibility for any consequences, legal, or other, of such use and/or misuse.
