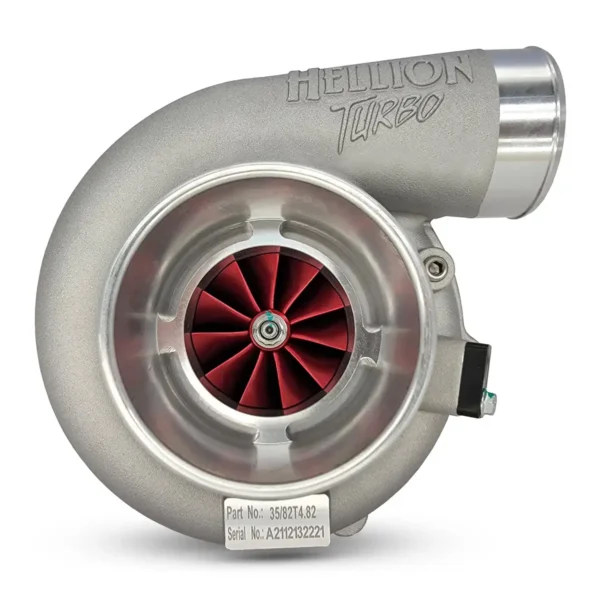

Hellion HT-6262B T4 Turbocharger
Hellion 62/62B T4 Turbocharger $1,389.60
Hellion 62/62 T4 Turbocharger
Hellion 62/62 T4 Turbocharger
Click to enlarge

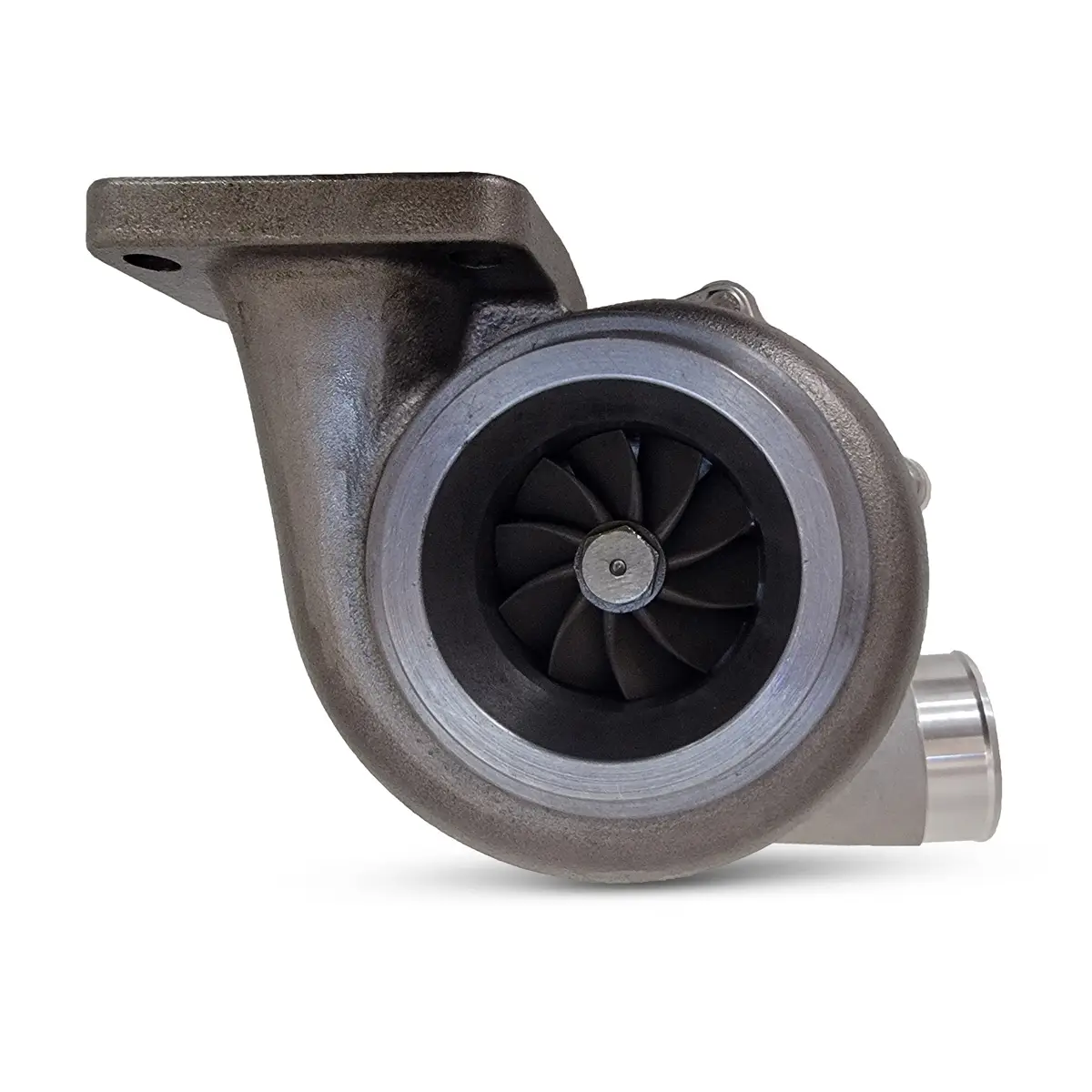

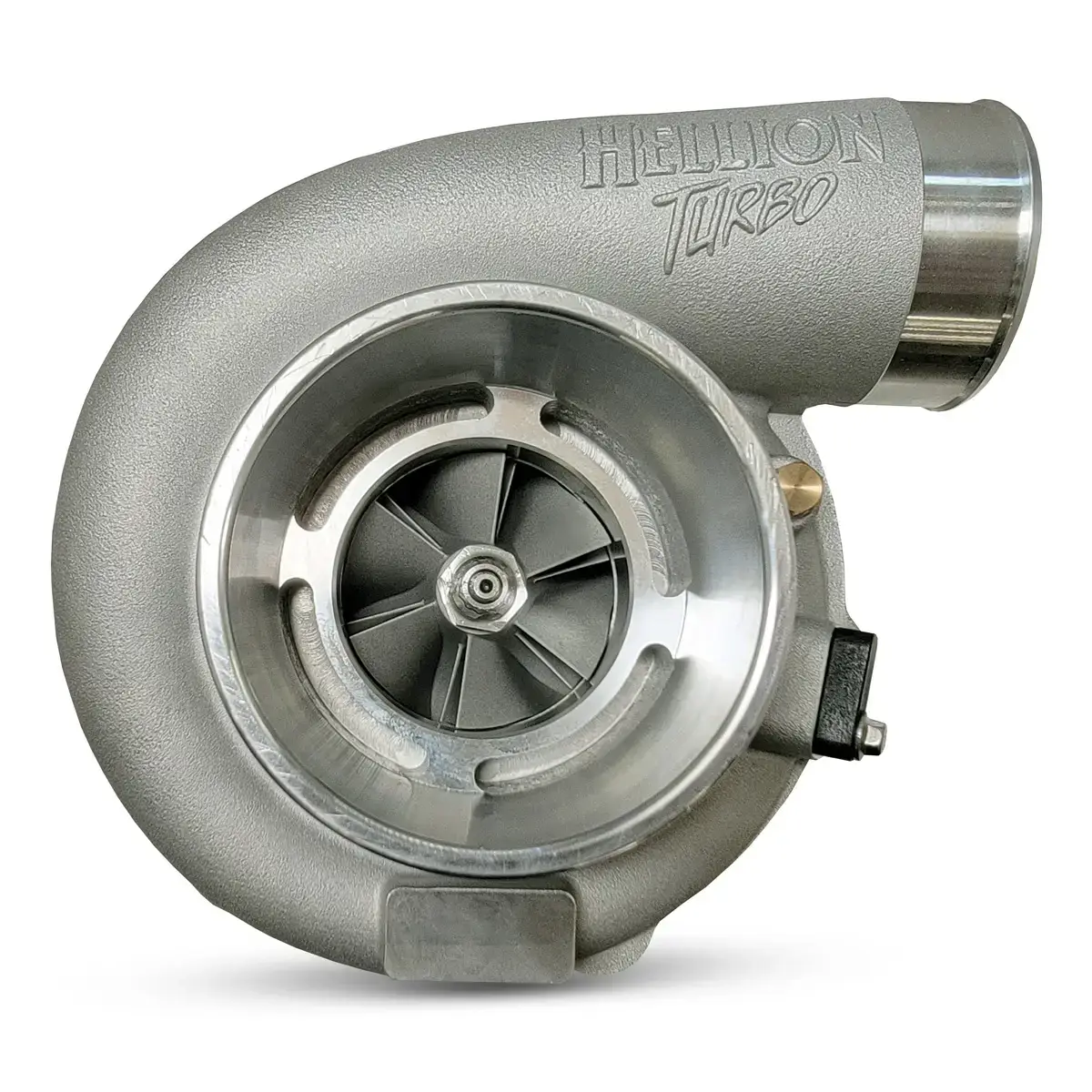

Hellion 62/62 T4 Turbocharger

SKU: HT-6262-T4

The Hellion 6262 T4 turbo is the benchmark unit for our game changing sleeper turbo systems. These turbos feature a cast 62mm compressor wheel and industry standard journal bearing housing. The turbine has a 62mm exducer and uses a T4 4-bolt inlet and 3″ v-band outlet housing. This unit comes standard with a 2-year warranty.

$899.00

-

Add to compare
Add to wishlist

Hellion Turbochargers feature the latest technology and innovation โ€“ all in a compact package. The entire turbocharger package has been developed and designed for increased reliability while improving performance.

Description

Features
  • 62mm compressor wheel.
  • 4โ€ inlet / 2.5โ€ outlet / .70 A/R compressor cover with and anti-surge ports standard.
  • 62mm turbine wheel.
  • Journal bearing center section.
  • Integrated speed sensor port.
  • 4-bolt inlet / 3โ€ณ v-band outlet / .81 A/R single scroll cast iron T4 turbine housing.

Specifications

Max HP

700

Bearing Type

Journal

Compressor Inducer (MM)

62

Ported Shroud

Yes

Turbine Exducer (MM)

62

Turbine Inlet

T4

Turbine Outlet

V-Band

Turbine A/R

0.81

Turbine Scroll

Single

  • Unsurpassed Technical Support
  • Universal Fitment
  • 2-Year Warranty
