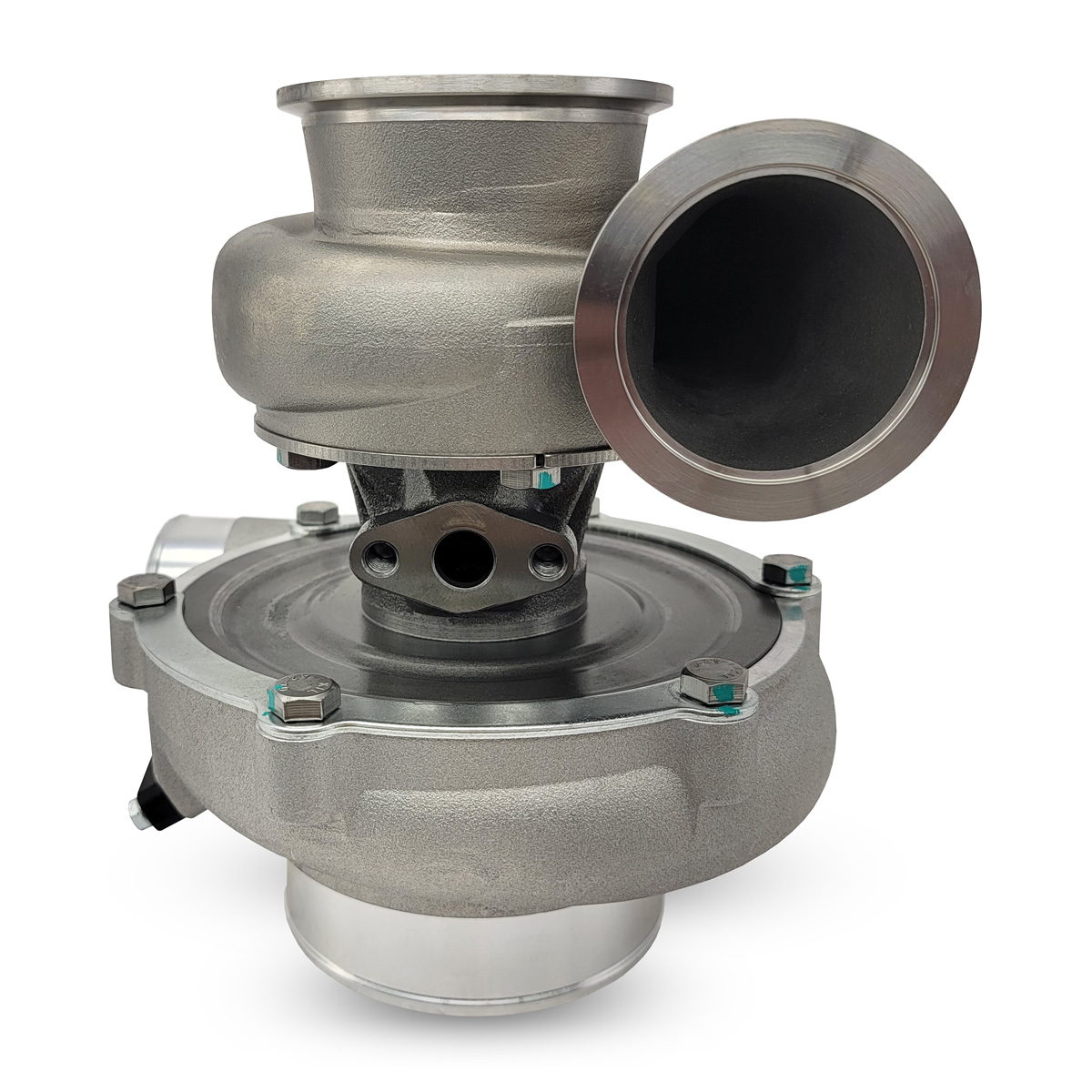

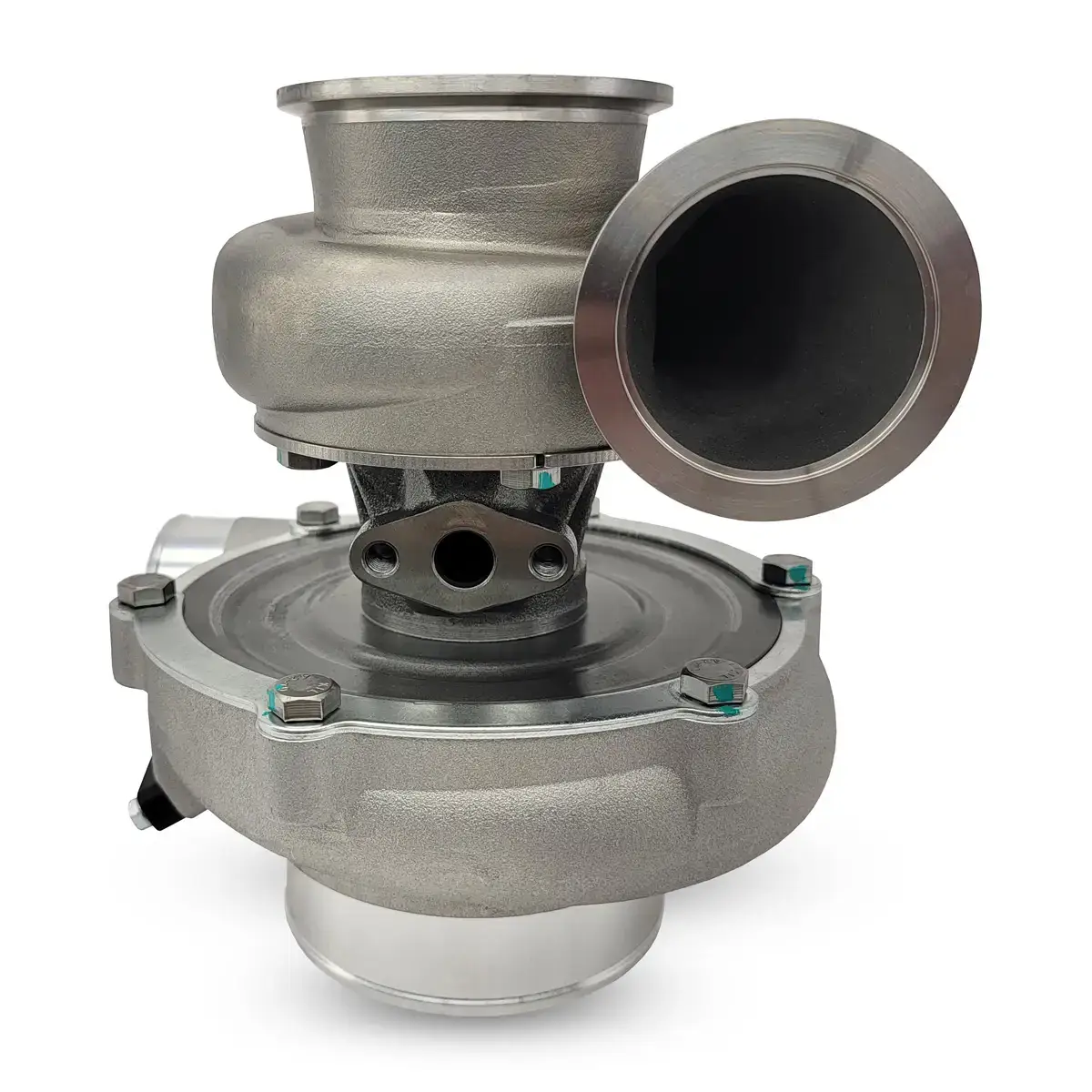

Hellion 62/62R V-Band Turbocharger

Description

The next major leap in performance is finally here! Hellion has released the all new next generation of performance turbocharger with the R series. Constructed from the ground up, this lightweight compact-series turbocharger features an all-new quick spool (low drag) ceramic dual ball bearing. The refined air-cooled center section has the latest heat transfer resistance engineered into the assembly and is the most advanced bearing housing available today.

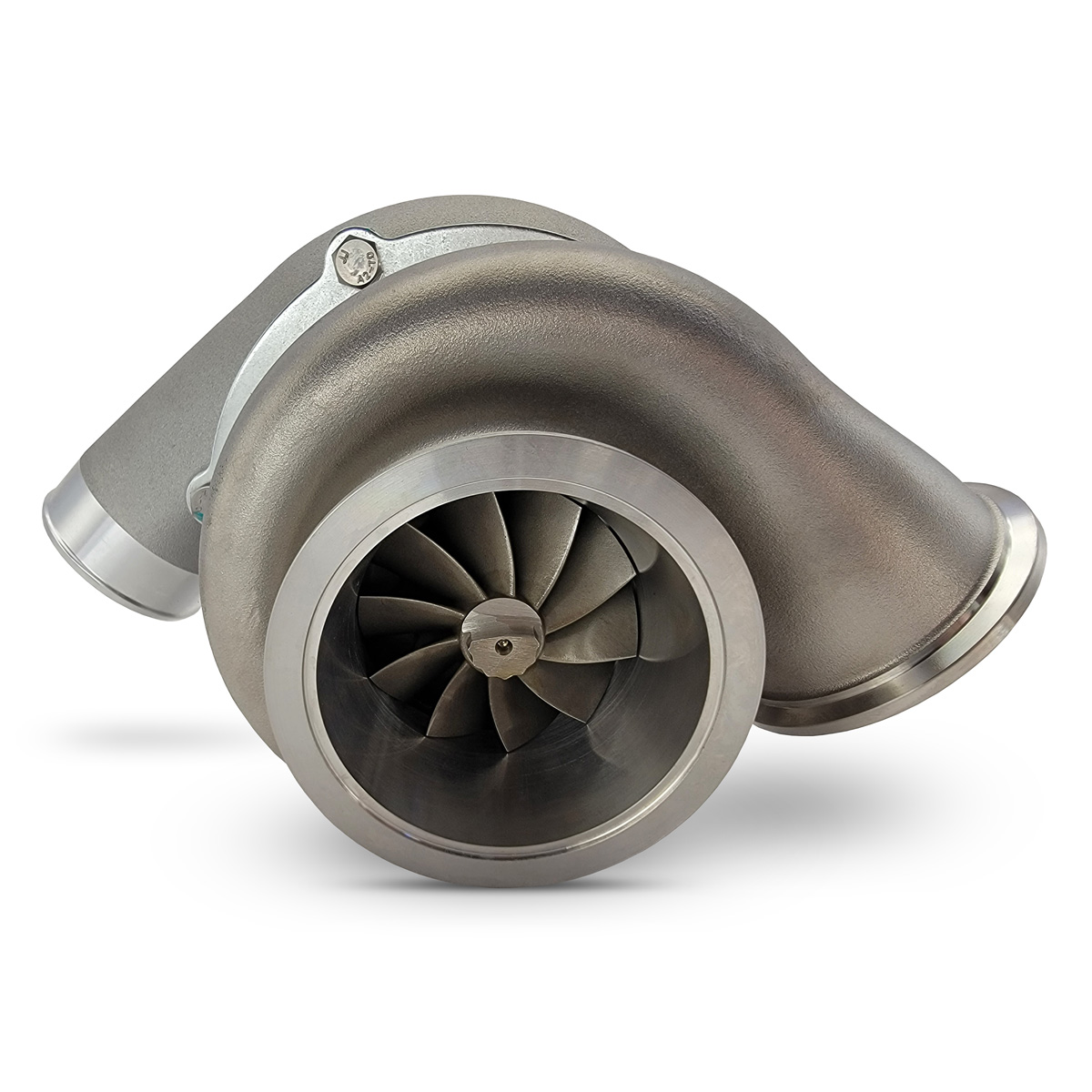

R Series Compressor Features

• Most advanced compressor wheel aerodynamics adding more blade swept area than other turbo of this size.
• 4” inlet and 2.5” outlet compressor cover is modernized, enlarged and streamlined to efficiently process the increased flow. Easily interchanged with other common turbos of this frame size – with increased performance.
• Integrated speed sensor port.
• Modernized, more robust dual ball bearing air cooled iron bearing housing with integral backplate to resist compressor back plate deflection under heavy loads.

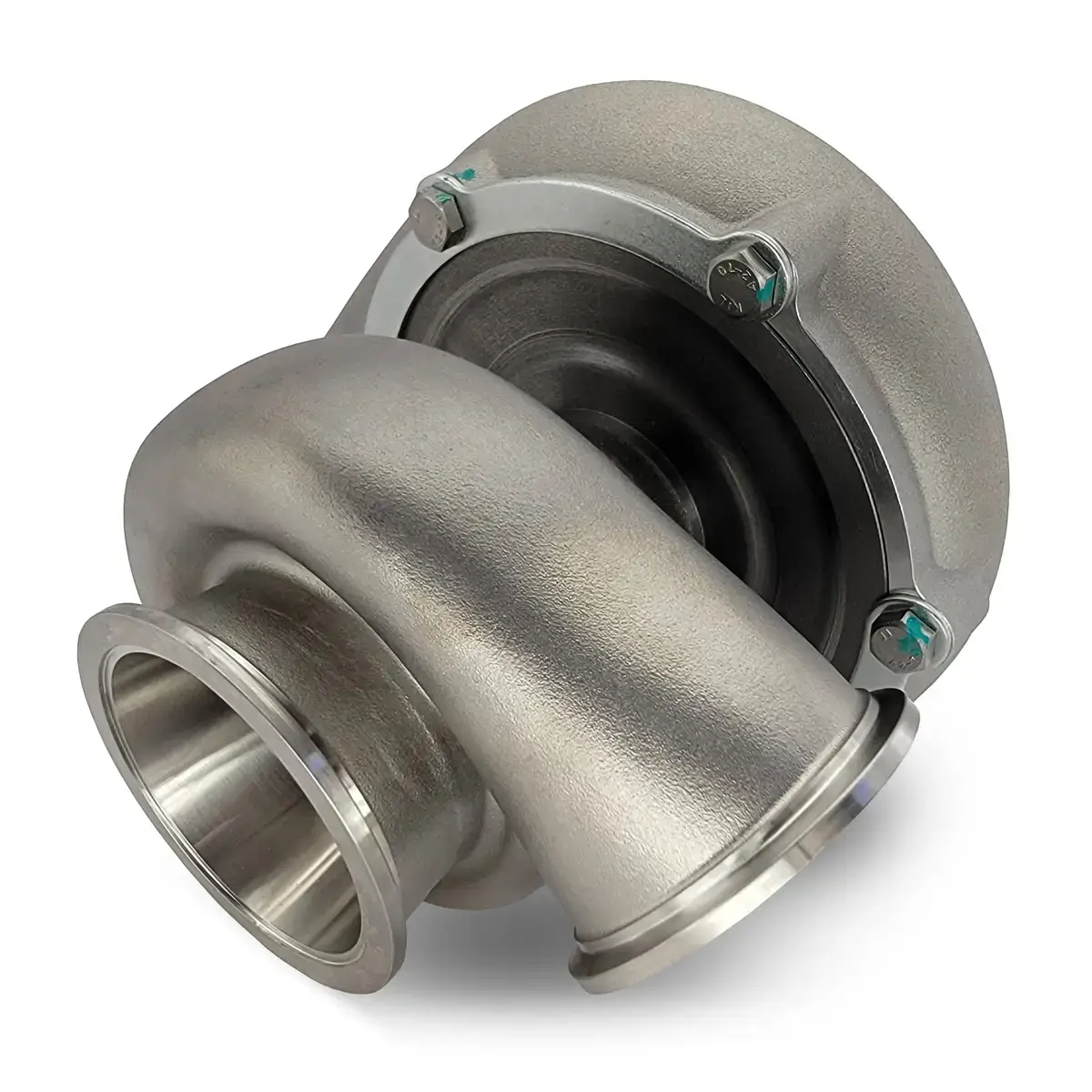

R Series Turbine Features

• Most advanced turbine wheel aerodynamics available.
• Updated modern turbine wheel includes larger diameter dual turbine piston ring for improved oil and gas seal capability.
• Incredibly strong shaft wheel weld joint for increased durability.
• Improved housings to maximize the inlet and outlet exhaust flow.
• .82 A/R  v-band inlet / 3″ v-band outlet single scroll turbine housing.
